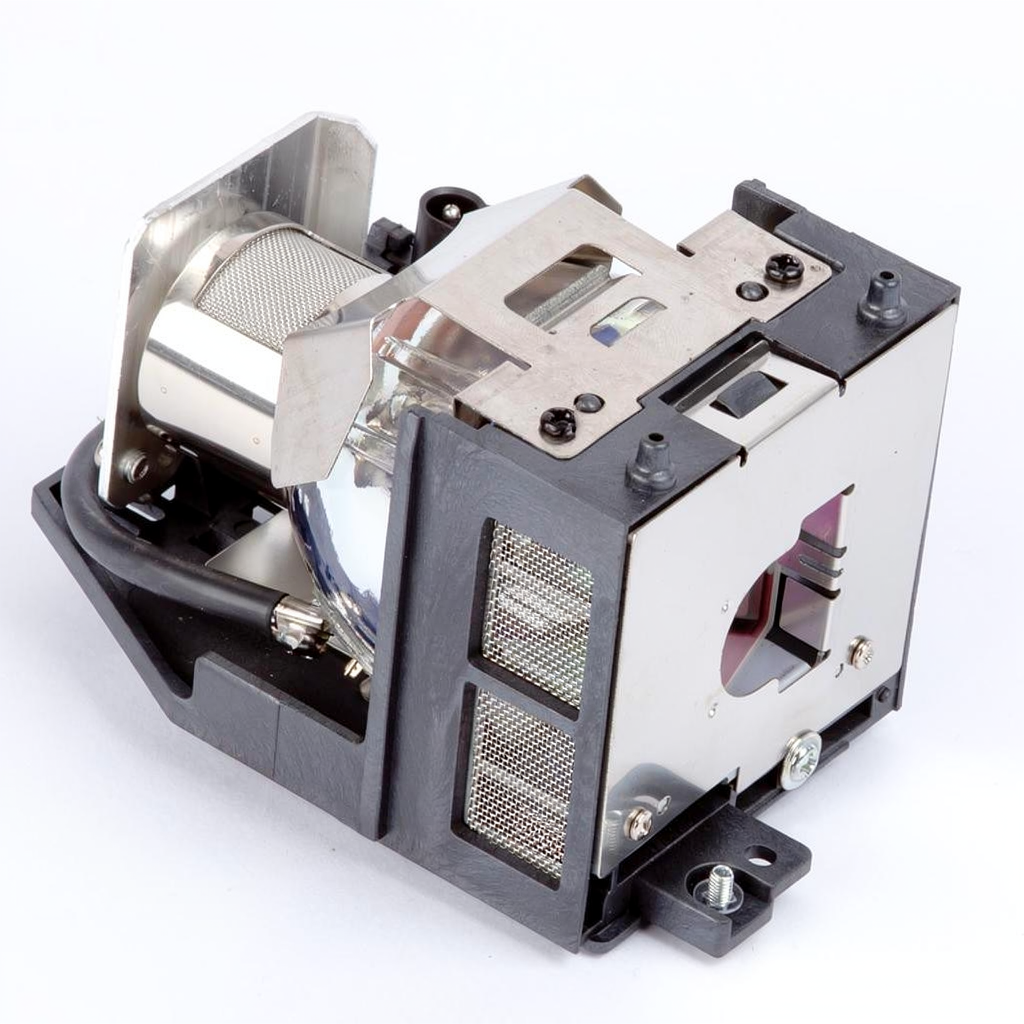

AN-XR20LP projector lamp with module
Fits 21 projector models from Eiki · Sharp.
This is our reference price in US dollars. We confirm the delivered price for United Arab Emirates on a formal quote, including shipping, duties where we can prepay them, and the correct local warranty terms.
▣ Free worldwide shipping included
▣ 180-day guarantee
▣ Quotation valid 30 days
Typically 3–5 working days once the order is placed.
DUBAI
Sun-Thu 09:00-18:00 GST
AN-XR20LP is a complete lamp and housing assembly for a wide range of Eiki and Sharp projectors, including the Eiki EIP-3000N and EIP-X3000N and the Sharp XG-MB and XR-20 series. Rated at 275 watts with a 2000-hour life, it drops straight into the projector as a single module, with no need to open a separate housing.
This same lamp is also listed as AH-66271 and AN-XR20LP/1, and a bare version without the housing is available separately for projectors where the existing module is still in good condition. With 21 supported projectors across two brands, confirm your exact model against the list before ordering, since the Sharp XR-20 and XR-22 ranges use several closely related lamp variants.
At a glance
- Wattage — 275 W
- Rated life — 2,000 hours
- Type — Projector Lamp with Module
- SKU — LA-08905
- Compatibility — 21 projector models
Common questions
Does AN-XR20LP fit both Eiki and Sharp projectors?
Yes, the same lamp assembly is used across six Eiki EIP models and fifteen Sharp XG and XR models, including the XG-MB55, XG-MB65 and XR-20 series. Check your projector's exact model suffix, since letters such as A or X mark different variants that still take this lamp.
What is the difference between AN-XR20LP and the AH-66271 lamp?
AN-XR20LP is the complete module, including the housing, while AH-66271 is the bare lamp on its own for projectors where the existing housing can be reused. Both share the same 275-watt bulb and 2000-hour rating.
Is AN-XR20LP/1 a different lamp from AN-XR20LP?
No, AN-XR20LP/1 is an alternative listing for the same lamp assembly. Sharp and Eiki have used slightly different code formats for this part over time, but all three numbers, AH-66271, AN-XR20LP and AN-XR20LP/1, point to the identical module.
How do I know if my Sharp projector needs the module version rather than the bare lamp?
If your projector's original housing is cracked, has a broken locating tab, or the connector pins are damaged, order the module version so the whole assembly is replaced together rather than fitted into a worn housing.
What should I check before fitting a new lamp module?
Turn the projector off and let it cool fully before opening the lamp door, and handle the new module by its frame rather than the glass. Confirm the orientation matches the old unit before sliding it into place.
This is a complete module — bulb already seated in its housing, so it drops straight in.
Does AN-XR20LP fit both Eiki and Sharp projectors?
Yes, the same lamp assembly is used across six Eiki EIP models and fifteen Sharp XG and XR models, including the XG-MB55, XG-MB65 and XR-20 series. Check your projector's exact model suffix, since letters such as A or X mark different variants that still take this lamp.
What is the difference between AN-XR20LP and the AH-66271 lamp?
AN-XR20LP is the complete module, including the housing, while AH-66271 is the bare lamp on its own for projectors where the existing housing can be reused. Both share the same 275-watt bulb and 2000-hour rating.
Is AN-XR20LP/1 a different lamp from AN-XR20LP?
No, AN-XR20LP/1 is an alternative listing for the same lamp assembly. Sharp and Eiki have used slightly different code formats for this part over time, but all three numbers, AH-66271, AN-XR20LP and AN-XR20LP/1, point to the identical module.
How do I know if my Sharp projector needs the module version rather than the bare lamp?
If your projector's original housing is cracked, has a broken locating tab, or the connector pins are damaged, order the module version so the whole assembly is replaced together rather than fitted into a worn housing.
What should I check before fitting a new lamp module?
Turn the projector off and let it cool fully before opening the lamp door, and handle the new module by its frame rather than the glass. Confirm the orientation matches the old unit before sliding it into place.
Other Eiki lamps in the catalogue. Codes in the same family often differ by a single character, so check the part number against your old lamp before ordering.
