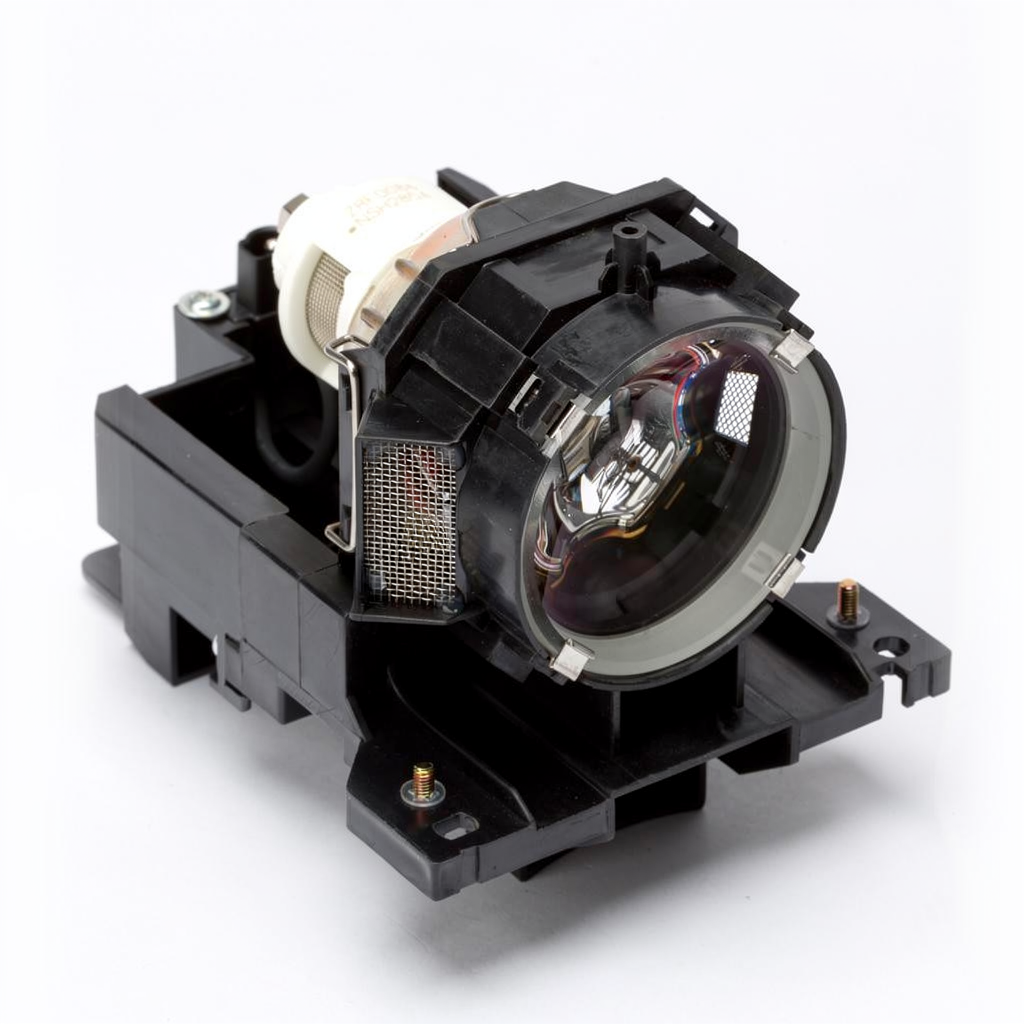

78-6969-9893-5 projector lamp with module
Fits 25 projector models from 3M · Dukane · Hitachi · Ricoh · Viewsonic.
This is our reference price in US dollars. We confirm the delivered price for United Arab Emirates on a formal quote, including shipping, duties where we can prepay them, and the correct local warranty terms.
▣ Free worldwide shipping included
▣ 180-day guarantee
▣ Quotation valid 30 days
Typically 3–5 working days once the order is placed.
DUBAI
Sun-Thu 09:00-18:00 GST
Part 78-6969-9893-5 is a 285W lamp and housing assembly for the 3M PL90X, X90 and X90W, Dukane's Image Pro 8918, 8943 and 8944, a wide range of Hitachi CP-X505 through CP-X608 models, Ricoh's SRP-3570 and SRP-4070, and the Viewsonic PJ1158. It carries a 2000-hour rating and fits as a single sealed unit.
This same lamp also appears under the codes 456-8943, DT00771 and RLC-021, so cross-check these against your old unit if the number on it does not match exactly. Because this is the module version, the housing is already attached and no separate cage purchase is required. With 25 listed projectors spanning five brands, confirm your exact model before ordering.
At a glance
- Wattage — 285 W
- Rated life — 2,000 hours
- Type — Projector Lamp with Module
- SKU — LA-07830
- Compatibility — 25 projector models
Common questions
Does this lamp fit the Hitachi CP-X608J?
Yes, part 78-6969-9893-5 is listed for the Hitachi CP-X608J along with the CP-X505, CP-X600, CP-X605 and several related Hitachi models, plus compatible 3M, Dukane, Ricoh and Viewsonic units sharing the same lamp design.
What other part numbers refer to this same lamp?
456-8943, DT00771 and RLC-021 all describe the same lamp as 78-6969-9893-5. If your old lamp's label shows any of these instead, this listing is still the correct replacement.
How do I know if I need the module or bare version?
If your projector's original lamp came as bulb and housing together, you need the module version, like this one. If only the bulb was replaceable and the housing stayed in the projector, a bare lamp is the correct choice.
What wattage and lamp life does this part have?
This lamp is rated at 285W with a 2000-hour life. These figures come from the manufacturer specification for part 78-6969-9893-5 and apply when the projector is used in standard, not eco, mode.
Is swapping in the 78-6969-9893-5 module a job for a technician?
Usually not. Power down, unplug and let the projector cool, then open the lamp bay, undo the retaining screws, exchange the module and refit the cover before powering back on.
This is a complete module — bulb already seated in its housing, so it drops straight in.
Does this lamp fit the Hitachi CP-X608J?
Yes, part 78-6969-9893-5 is listed for the Hitachi CP-X608J along with the CP-X505, CP-X600, CP-X605 and several related Hitachi models, plus compatible 3M, Dukane, Ricoh and Viewsonic units sharing the same lamp design.
What other part numbers refer to this same lamp?
456-8943, DT00771 and RLC-021 all describe the same lamp as 78-6969-9893-5. If your old lamp's label shows any of these instead, this listing is still the correct replacement.
How do I know if I need the module or bare version?
If your projector's original lamp came as bulb and housing together, you need the module version, like this one. If only the bulb was replaceable and the housing stayed in the projector, a bare lamp is the correct choice.
What wattage and lamp life does this part have?
This lamp is rated at 285W with a 2000-hour life. These figures come from the manufacturer specification for part 78-6969-9893-5 and apply when the projector is used in standard, not eco, mode.
Is swapping in the 78-6969-9893-5 module a job for a technician?
Usually not. Power down, unplug and let the projector cool, then open the lamp bay, undo the retaining screws, exchange the module and refit the cover before powering back on.
