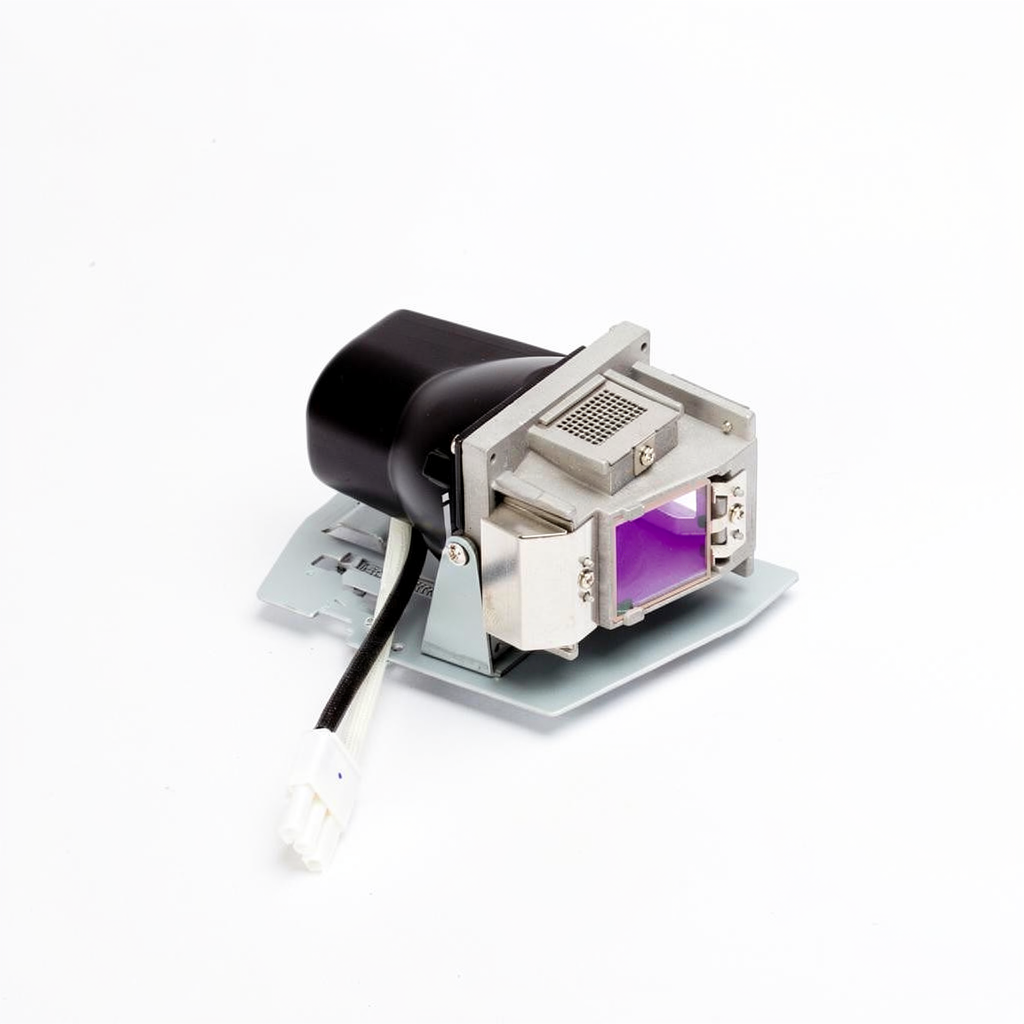

5811116310-S Projector Lamp with Module
Fits 11 projector models from Vivitek.
This is our reference price in US dollars. We confirm the delivered price for United Arab Emirates on a formal quote, including shipping, duties where we can prepay them, and the correct local warranty terms.
▣ Free worldwide shipping included
▣ 180-day guarantee
▣ Quotation valid 30 days
Typically 3–5 working days once the order is placed.
DUBAI
Sun-Thu 09:00-18:00 GST
5811116310-S is a 180-watt lamp module rated for 3000 hours, shared across eleven Vivitek classroom and meeting-room projectors: the D520, D520ST, D522ST, D522WT, D525ST, D530, D535, D536-3D, D537, D537W and D538W-3D. It supplies the bulb already fitted inside its housing, so the complete unit lifts out and back in together.
The bare-lamp equivalent is 5811116310-SU, at a lower price, for anyone who would rather reuse their existing housing. With eleven models sharing this code, confirm your projector's exact suffix — ST, WT or 3D — against the list above, since Vivitek's wider D500 range extends beyond these eleven models.
At a glance
- Wattage — 180 W
- Rated life — 3,000 hours
- Type — Projector Lamp with Module
- SKU — LA-10658
- Compatibility — 11 projector models
Common questions
What's the difference between buying 5811116310-S and 5811116310-SU?
5811116310-S is the full module, lamp and housing together. 5811116310-SU is the bare bulb alone, for fitting into a housing you already have. Both share the same 180-watt, 3000-hour specification across the D520 to D538 range.
Does the 3D suffix on models like D536-3D mean a different lamp is needed?
No. The D536-3D and D538W-3D use the same 5811116310-S module as the standard D520 to D537 models — the 3D designation refers to stereoscopic playback support, not a different lamp engine.
How do the ST and WT suffixes affect which lamp I need?
They describe the lens — ST for short-throw, WT for wide-throw — rather than the lamp. Models like D520ST, D522ST, D525ST and D522WT all take the same 5811116310-S module as the standard D520 and D530.
Can I fit 5811116310-S myself without a technician?
Yes, fitting a complete module is generally straightforward: power down and unplug the projector, let it cool, open the lamp access panel, remove the old module and secure the new one in the same bracket before closing the panel.
Is 5811116310-S the right choice if I've never changed a projector lamp before?
It is a reasonable starting point, since a module needs no separate handling of a bare bulb — you replace the housing and lamp as one sealed unit rather than fitting a burner into an existing cage.
This is a complete module — bulb already seated in its housing, so it drops straight in.
What's the difference between buying 5811116310-S and 5811116310-SU?
5811116310-S is the full module, lamp and housing together. 5811116310-SU is the bare bulb alone, for fitting into a housing you already have. Both share the same 180-watt, 3000-hour specification across the D520 to D538 range.
Does the 3D suffix on models like D536-3D mean a different lamp is needed?
No. The D536-3D and D538W-3D use the same 5811116310-S module as the standard D520 to D537 models — the 3D designation refers to stereoscopic playback support, not a different lamp engine.
How do the ST and WT suffixes affect which lamp I need?
They describe the lens — ST for short-throw, WT for wide-throw — rather than the lamp. Models like D520ST, D522ST, D525ST and D522WT all take the same 5811116310-S module as the standard D520 and D530.
Can I fit 5811116310-S myself without a technician?
Yes, fitting a complete module is generally straightforward: power down and unplug the projector, let it cool, open the lamp access panel, remove the old module and secure the new one in the same bracket before closing the panel.
Is 5811116310-S the right choice if I've never changed a projector lamp before?
It is a reasonable starting point, since a module needs no separate handling of a bare bulb — you replace the housing and lamp as one sealed unit rather than fitting a burner into an existing cage.
Other Vivitek lamps in the catalogue. Codes in the same family often differ by a single character, so check the part number against your old lamp before ordering.
